I cleaned my machine and put everything up as usual and there, I HAVE A HUGE PROBLEM !!!

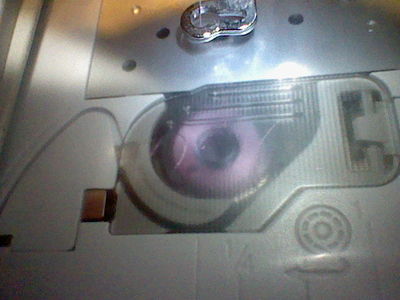

thread in the bobin don't go in the right direction, the start node is not on my work but in the machine and therefore the points do not and it blocks me the needle after a few points...what did I do wrong ???Please look the picture
200127
I was just going to say the same as mooie24....if another piece of thread is stuck in the upper compartment, it throws the stitching off also....Many is the times mine has done it....some threads aren't as nice as others and don't slide through easily, but catch on any sliver of machines....
34246
8767HI Sissi, I have 2 of these machines. one just had to go in as I to thought I had the same problem as you thought it was a problem with the bobbin, turned out a piece of plastic along the top thread route had split,and was catching my top thread which was stopping the bobbin from running correctly, although my dealer said an unususal problem was very easily fixed, he also reset all my tensions for me. I found this very frustatating as I have 2 of these so had them side by side to compare as well, I was so sure it was a problem with the bobbin I changed parts with both machines
and in the end had to give in lol big hugs Maria xxx
2 comments
by sissibrode
11 Oct 2009
My dealer say : "You sure have a problem with the slipway and syncing your machine."... Don't really know what is it :o(
by mooie24
16 Oct 2009
this machine is well known for catching the upper thread around the movements inside,when threaded and running it appears to have a bobbin problem, but mostly its the upper thread problem, then once you starting running it you know if you have a problem try this link...
i found this very helpfull helpful in times of great need lol :-
http://www.annsultfixit.com/UltFi...
20276Hello Sisi,
i'm so sorry to hear that the problems or not from cleaning your machine,
i hope that your machine is faster repaird than a month,
brother does have a great after sale service with warranty,
when my machines where broken i did also dont have to pay one thing for the repairings because it was in warranty,
i did have the luck that i only did have to wait for one week for the machine to get it repaird,i hope that your machine also wil be repaird quick and that he is working good again after the repairing,
i'm sorry that i could not help you,gr connie
1 comment
30391Dear Sissi,
So sorry about your problem; sorry I cannot help. Best of luck with the repair problems.
Jacqueline
70914OK girls, the problem of my machine does not come from a wrong operation after cleaning. It will then go back to after-sale next week ... which means I do not see him again before a month! I'm too sad!
The good news is that repairs will be made under warranty, and the tranport go and return will be free : I would not be charged
200127Coucou Sissi, si ton pb n'est pas réglé, tél au 003261411274 et demande à parler à Mr Stecker. Tu lui expliques et s'il peut te dépanner par tél il le fera même si tu n'as pas acheté la machine chez lui. Si le pb vient du porte canette, fais un essai avec l'autre qui est livré avec la machine. Amicalement,
1 comment
by sissibrode
09 Oct 2009
merci Françoise. Je vais voir ce que me dit mon revendeur et ensuite j'aviserais. Ma machine n'a été livré qu'avec le porte canette inclus, pas d'autre de secours...
5291The thread on the bobbin should be going anti-clockwise, it comes out the front towards you and you pull it to the right, down and around the hook/loop plastic piece then to the left.
Look closely at the diagram etched into the machine that you can see in your pictures.
Hope this helps, hugs n roses, Meganne
1 comment
122864If you took the bobbin case out, it may not have seated itself properly when you put it in again. Do it again, and make sure that it lines up and is supported on all sides by the well that the bobbin case fits into. Then, try a new bobbin and a new needle. If I were there, I could show you what I mean. Good luck!
1 comment
by sissibrode
08 Oct 2009
I have do that Auntbaba, replace the bobin, the bobin compartment, change the upper thread and the needle, but nothing change....

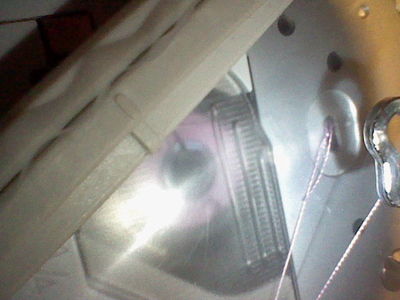

29871OK perhaps can you see better what happened with this pictures....
[2]
200127have you tryd to replace the upperthread again?
1 comment
30391when you clean your machine what parts do you clean and remove?
1 comment
30391took a look at pictures,and wonder just like you what's wrong. I can only advise, take the parts you removed out again. and place them back another time, change the needle and use another bobbin. And I hope it works properly again. If not: I'm afraid you have to let the dealer take a look at it.
hope your embroidery-problem will be fixed! hugs4u
1 comment
742965i have taken another look at the pictures did you put the bobbin with the thread down in your machine? it looks like your bobbin is not right in the machine,gr connie
1 comment
30391I just checked several times: this is not the bobbin thread is wrong, it's the top wire that wraps around the bobbin compartment ...
the can is in the right direction, it is impossible to deceive.
I don't understand....
200127Hello ,i have also a brother 700e innovis II ,
did you put your bobbin good in the machine?
have you try to start the machine with another bobbin,i have got a problem with the bobbin and i did another bobbin in the machine and the problem was gone,somethimes does the machine works not good when the bobbin is not good,
i hope that their is nothing broken in your machine,i have got problems with my machines more than one time and everytime they have to replace a new piece in the machine,
when i did have the problems with my machine it also blocked after just starting embroidering,
i hope that you can fix your machine and that it is nothing to serieus,gr connie
30391Sissi, from what I can see, it looks like you have your bobbin thread is going in the wrong direction. Do you need to flip your bobbin over? Check your machine manual. I can see that you have your bobbin holder in correctly. H&*.
16434Could you possibly have put the bobbin race (the thing that comes out and holds the bobbin) in backwards? And is your bobbin in the right way? I sure hope somebody with a Brother can help you, this is rather different than a Janome! Good luck, hugs, Marji
33451
10393Sylvie, I wished that I could help - but I don't know your machine - so I will wish you luck in fixing it and give you a flower. *4U
211079864sissy, did you put your plate on backwards?..San
3 comments
by marjialexa
08 Oct 2009
Flat silver thing under the foot. Check, but I don't think you did, it has a little notch that looks like it prevents that. Hugs, Marji

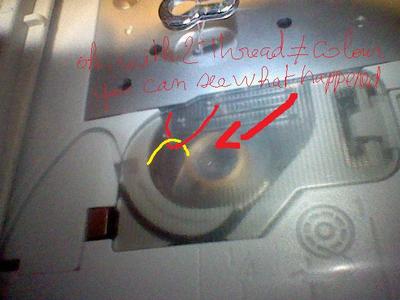

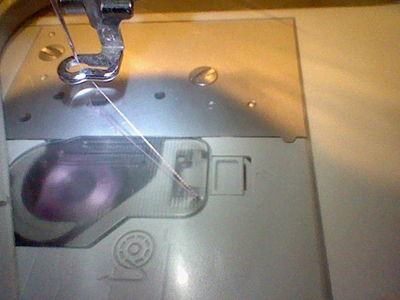

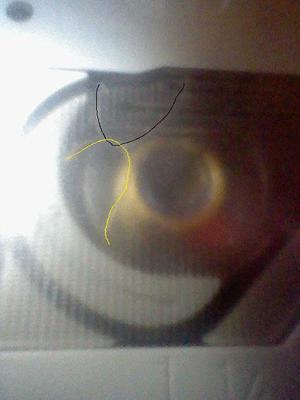

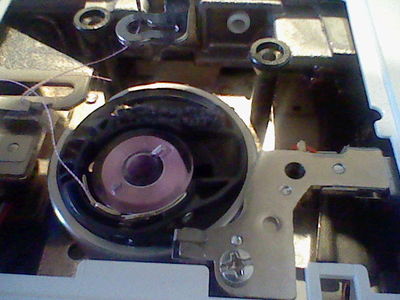

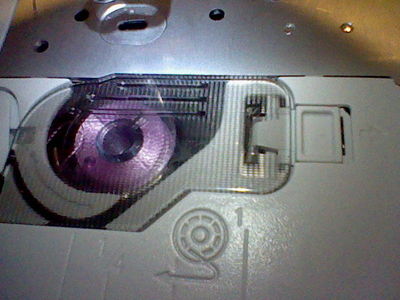

10393here the pictures. on 4 and 5 you can see that the start node is out of place...
Thanks for your help
[2]
[3]
[4]
[5]
